VICTORY SEA‑DOO SPARK/TRIXX TURBO KIT REV2

VICTORY SEA‑DOO SPARK/TRIXX TURBO KIT REV2

Our popular and well-proven Victory Turbo Kit - now in it’s second revision with even better durability and smoother installation. This is a complete engine hardware kit and includes all parts you need to convert your Sea-doo Spark/Trixx and turn it into a turbocharged performance machine! We highly-recommend you replace the impeller with a Solas 13/18 (not included in this kit). You will also need to flash your ECU with a new tuning software especially designed for Sea-doo Spark/Trixx with this turbo kit. The flash (programming) is fast and effortless with our tuning software and the MaptunerX which also brings more useful features for the Sea-Doo Spark.

Technical information:
Target RPM: 8800-9000rpm
Boost for stock engine: 0,55-0,60bar
Recommended impeller: Solas 13/18
Top speed: 61-63mph

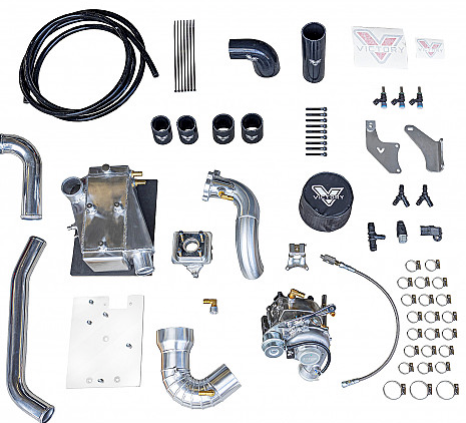

Kit includes:
1x IHI Turbocharger.
1x Wastegate with 7.5psi (0,5 bar) spring.
1x MAP- Sensor
3x Injectors
1x VICTORY Mount from engine to turbo and exhaust.
1x Exhaust neck flange with gasket and k-nuts.
1x Exhaust for OEM Silencer.
1x VICTORY Silicone hose kit.
1x Inter pipe for Intercooler -> Turbo.
1x Inter pipe for Throttle body -> Intercooler.
2x Acrylic sheets for intercooler and engine power supply components.
1x Air Filter Tube with engine top breather connector.
1x VICTORY 4” Stainless Air Filter with water resistant hat.
1x Joint for oil inlet.
1x Stand for water coolant tank.
1x Reinforced Silicone Hose Kit for water
9x M8 Studs and k-nuts for exhaust manifold.
1x Permatex Supra Copper High Temp Silicone.
1x Oxygen Sensor Plug.
1x Damp material for protecting ECU.
Straps.
Stainless clamps in various sizes.
Stainless screws and nuts.

NOTE! This kit does not include MaptunerX, tuning license or impeller. See related products.
